- MSI
- Ново
Цена
€55 45 / 108 45 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.msi.com/Motherboard/PRO-A520M-S/Overview
Model

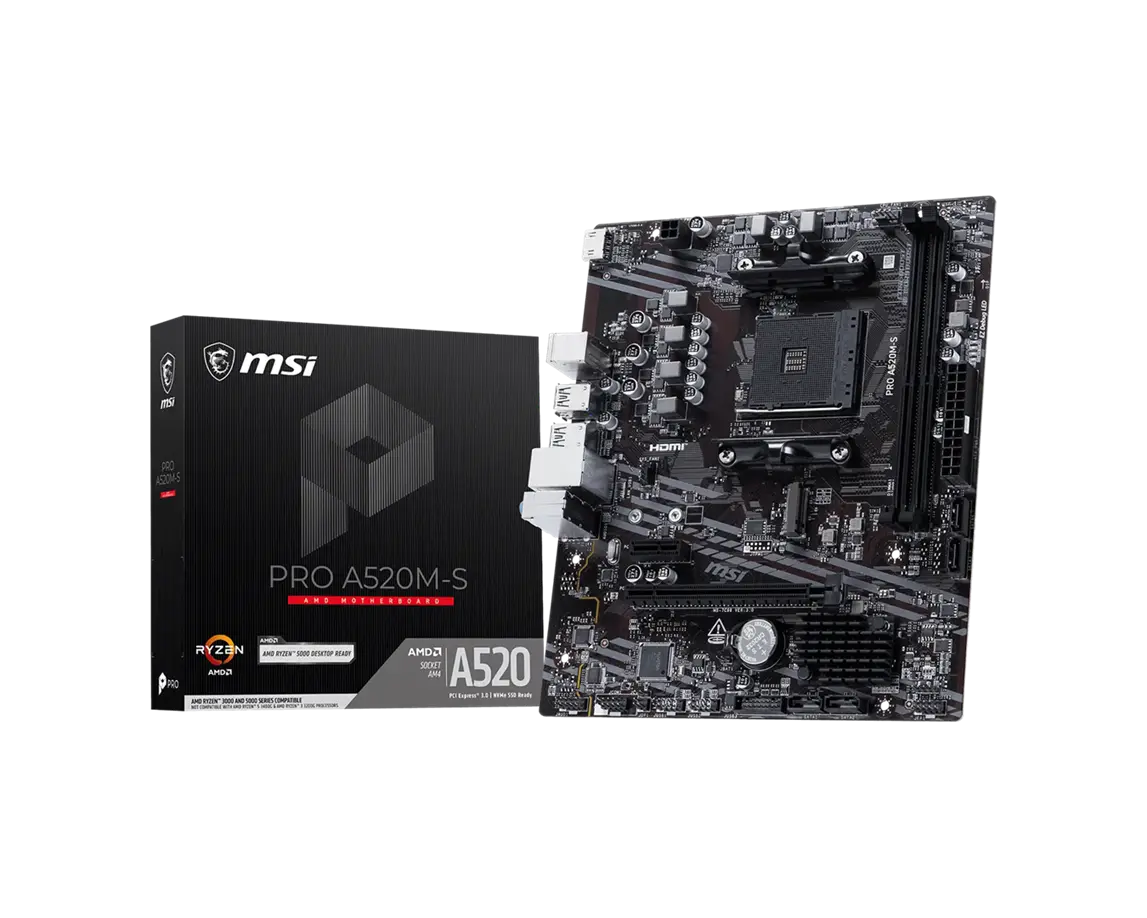

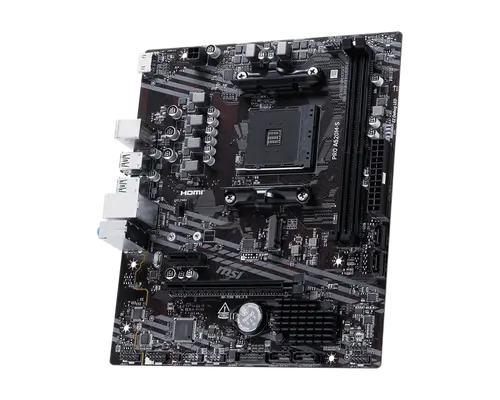

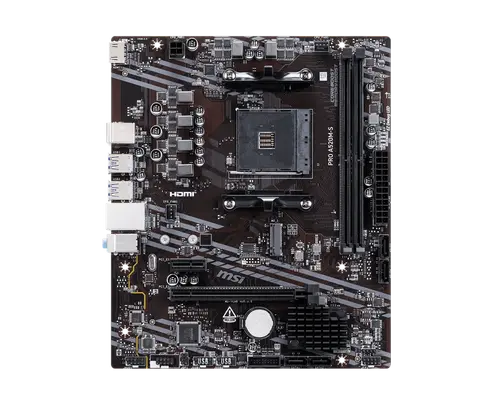

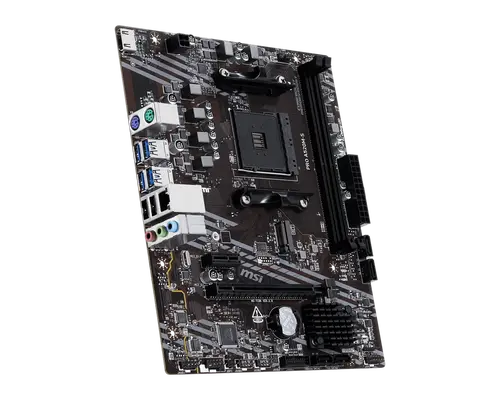

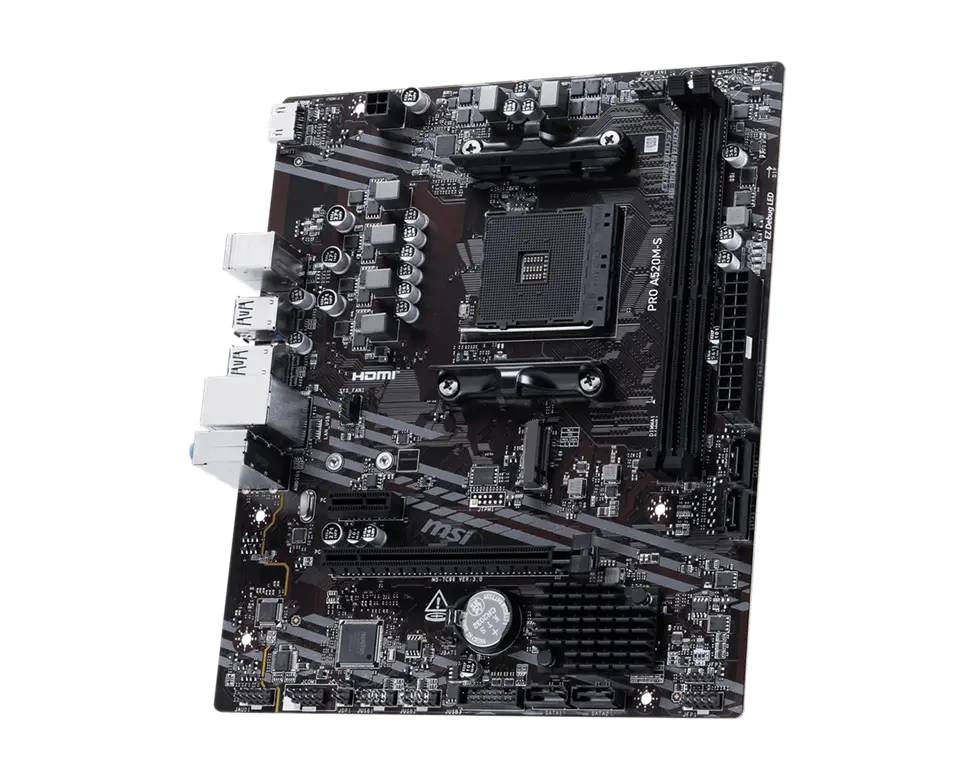

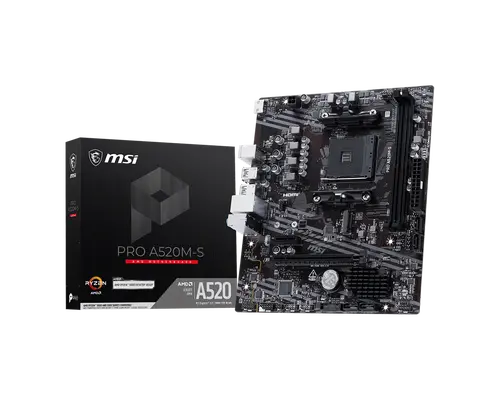

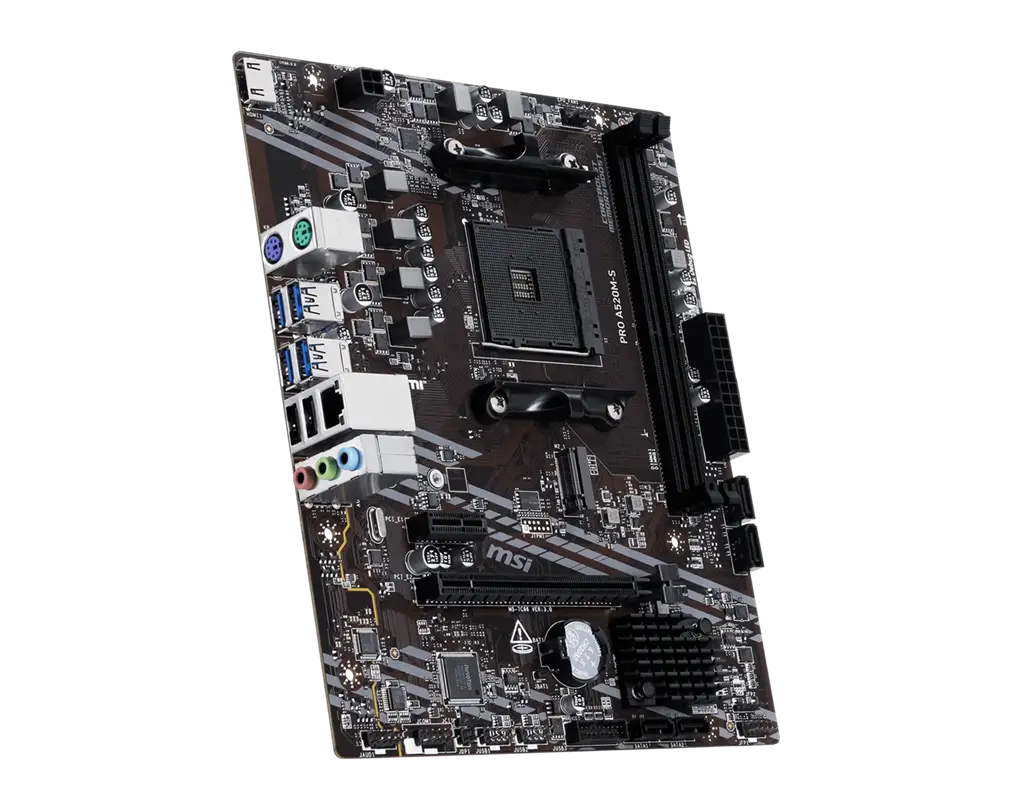

PRO A520M-S
Socket
AM4
Graphics
1x HDMI™
Support HDMITM 1.4, maximum resolution of 4K 30Hz
CPU's supported
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
Chipset
AMD A520
Expansion slots
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU)
Storage
1x M.2
M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices
4x SATA 6G
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Memory type
2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
Ryzen™ 5000 Series Processors max. overclocking:
• 1DPC 1R Max speed up to 4600+ MT/s
• 1DPC 2R Max speed up to 3866+ MT/s
Supports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode

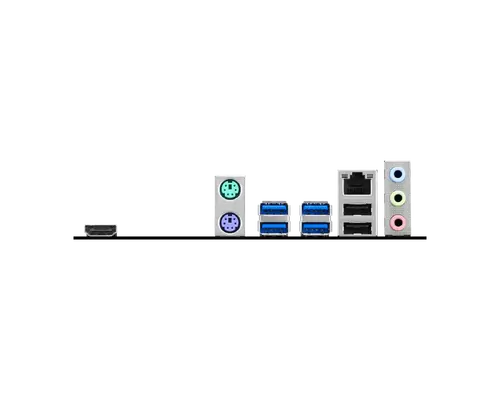

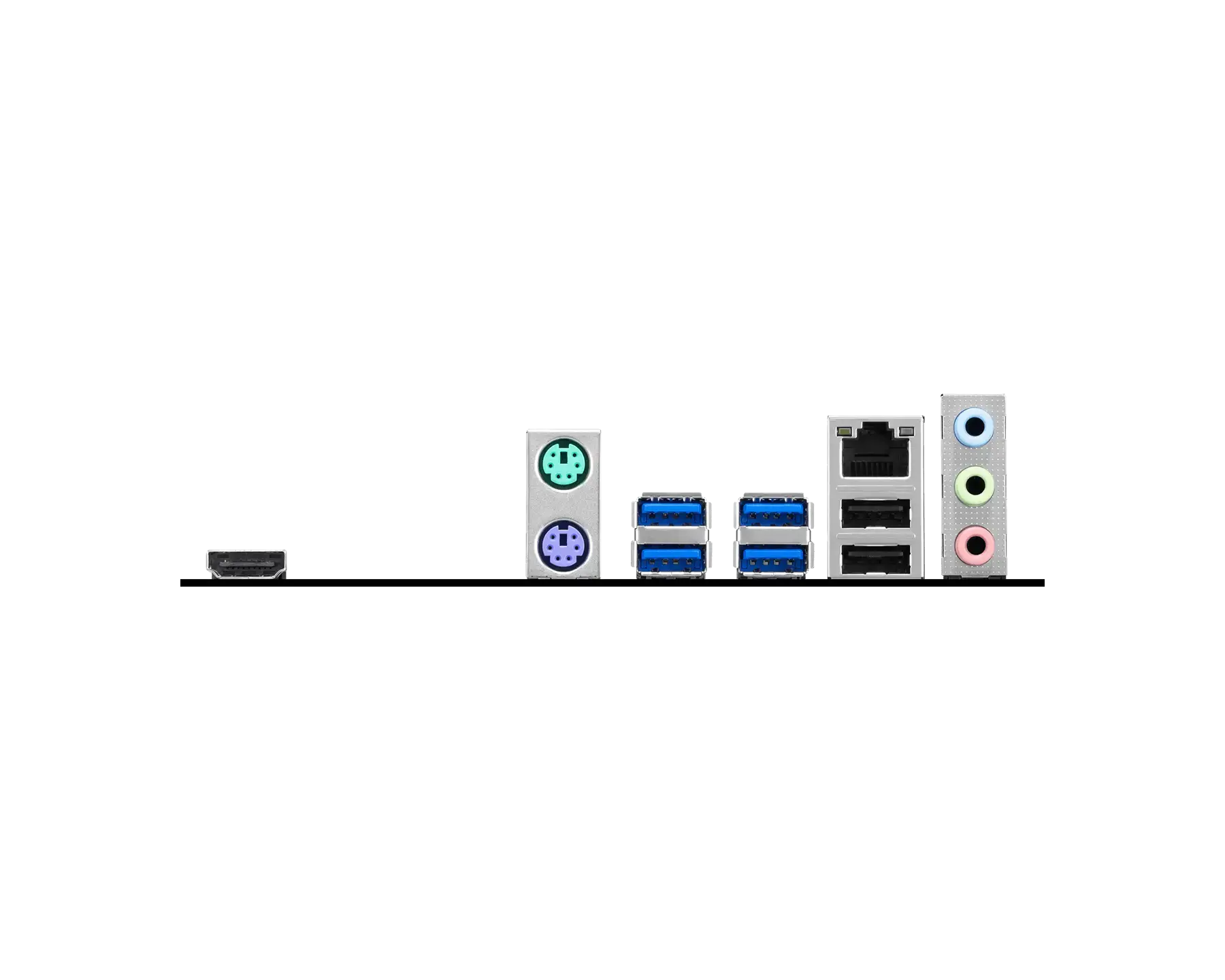

Rear panel I/O
HDMI™
Keyboard / Mouse
USB 5Gbps Type-A
LAN Port
Audio connectors
USB 2.0
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
Connectors
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Lan
Realtek® RTL8111H 1Gbps LAN
Form factor
mATX, 200mmx236mm
OS
Support for Windows® 11 64-bit
Other
4x EZ Debug LED
Данни, подадени от официалния вносител за България.
| Атрибут | Стойност |
|---|---|
| Socket | AM4 |
| Vendor_url | https://www.msi.com/Motherboard/PRO-A520M-S/Overview |
| Chipset | AMD A520 |
| OS | Support for Windows® 11 64-bit |
| CPU's supported | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors |
| Memory type | 2x DDR4, Maximum Memory Capacity 64GB |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE |
| Memory type | Supports JEDEC Speed |
| Memory type | Supports Memory Overclocking by A-XMP OC mode |
| Memory type | Ryzen™ 5000 Series Processors max. overclocking: |
| Memory type | • 1DPC 1R Max speed up to 4600+ MT/s |
| Memory type | • 1DPC 2R Max speed up to 3866+ MT/s |
| Form Factor | mATX, 200mmx236mm |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 Codec |
| Rear panel I/O | LAN port |
| Rear panel I/O | Keyboard / Mouse |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | USB 5Gbps Type-A |
| LAN | Realtek® RTL8111H 1Gbps LAN |
| Model | PRO A520M-S |
| Expansion Slots | 1x PCI-E x16 slot |
| Expansion Slots | 1x PCI-E x1 slot |
| Expansion Slots | PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU) |
| Graphics | 1x HDMI™ |
| Graphics | Support HDMI™ 1.4, maximum resolution of 4K 30Hz |
| Other | 4x EZ Debug LED |
| Storage | 1x M.2 |
| Storage | 4x SATA 6G |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x Power Connector(CPU_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 1x System Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x Com Port (JCOM) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 2x USB 5Gbps Type A ports |
| USB | 2x USB 2.0 (Rear) |
| USB | 4x USB 2.0 (Front) |
| USB | 4x USB 5Gbps Type A (Rear) |
| USB | 2x USB 5Gbps Type A (Front) |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Тегло | 0.00кг |
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
